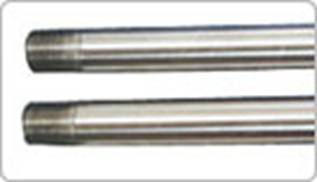

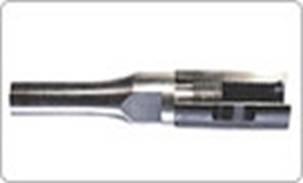

 API Polished Rod:  Alloy Steel



Design to be used with moderate to heavy loads in non-corrosive or effectively inhibited wells.  The polish rod is using (AISI 4130) Mod steel to manufacture.

Mechanical Properties

Ultimate Tensile Strength, PSI

95,000~160,000

(MPa)

( 655)-(1,103)

Rod Size, OD

11/8″; 11/4″; 11/2

(mm)

(28.6);(31.8);(38.1)

Rod Length

  8ft~36ft



Hot Treatment

Quenching; Temper

Pony rod;

The pony rods chemical properties, rod diameters, dimensions and tolerance are same as sucker rods. Standard lengths: 2ft (0.61m), 4ft (1.22m), 6ft (1.83m) ,8ft(2.44m) ,and 10ft(3.05m).Other lengths are available on special order.





Rod Coupling;



Two types of coupling are available: Class T and Class SM, full size and slim size.  Dimensions and tolerance conform to API spec. 11 B.  Couplings are available in a variety of styles in most sucker rod sizes and combination of sizes.

The minimum tensile strength of the coupling is 95,000 psi (655MPa) and the material hardness is 56 to 62 HRA.



Sub-coupling;

5/8”-3/4” T(SM), 3/4”-7/8”T(SM), 7/8”-1”T(SM), 1”-1 1/8” T(SM).

Sinker bar;

The sinker bar offered two grades to customers: grade 1 (carbon) and 2 (alloy) and the available sizes are 1 1/4”, 1 1/2”, 1 3/8”, 1 5/8”, 1 3/4”.

Advantageous of using sinker bar:

Create constant tension in the rod string when the sinker bar placed at bottom of the rod string.

Eliminates compression on the rod string ,reduce the amount of fatigue failures and the chances of buckling;.

Reduction in rod and tubing wear if including sinker bar in the rod string.

Coupling sizes and weights

Type

OD(in)

Weight(lb/kg)

standard

slimhole

standard

slimhole

5/8”

1-1/2

1-1/4

1.30

0.59

1.00

0.45

3/4”

1-5/8

1-1/2

1.50

0.68

1.26

0.57

7/8”

1-13/16

1-5/8

1.80

0.82

1.50

0.68

1”

2-3/16

2

2.58

1.17

2.01

0.91

1 1/8”

2-3/8

--

3.13

1.42

--

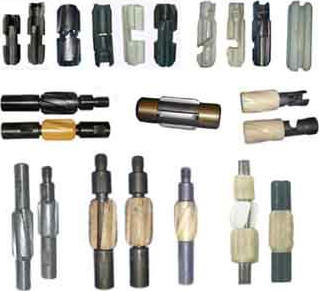

Sucker Rod Centralizer

SHINEQUIP’s Rubber Rod Guides utilize a sleek, slotted design. That simple design allows for easy installation in the field. This R type Sucker rod centralizer is made of UHMW-PE engineering material with high quality, high strength, high tenacity, longer lifetime, high anti-friction ability. Easy install and maintenance and bigger open area. We have size for sucker rod 5/8”-1 1/8” and use for tubing size from 2 3/8” and 3 1/2” Our Rubber







High Strength —— with very high abrasion resistance and mechanical strength, service efficiency is increased by 2-3 times than that of conventional centralizer.

Light Load     —— this product is of small specific gravity and light so that the gravity load of sucker rod is cut down.

Low wear     —— Owing to using Nylon grain stuffing in the course of production, the centralizer maintain comparably stable frictional abrasion, tubing wear caused by it is greatly decreased and service life of tubing is extended.

Other Functions —— Using joints between sucker rods, the centralizer is tightly clamped on to the sucker rod, and it does not run up and down along the sucker rod.



Item type

Inner diameter

(mm)

Outer diameter

(mm)

length

(mm)

Circulation  area

Working temperature

(℃)

Endurance life

(ten thousand)

NKF1658

16

58

120/175

20

120-160

50



Wheeled rod centralizer

SIZE

GL-16

GL-19

GL-22

GL-25

OD mm

58

70

58

70

58

70

58

70

TUBING  inch

27/8

31/2

27/8

31/2

27/8

31/2

27/8

31/2

LENGTH   mm

400

430

400

430

400

430

400

430

WEIGHT Kg

3.2

3.6

3.5

3.8

3.8

4.3

4.6

4.9

CONNECTION THREAD

PJG16

PJG19

PJG22

PJG25

LOAD CAPACITY  KN

80

100

120

160



Anti-eccentric rod centralizer is a kind of indispensable part to meet the operation needs of deviated well and high difficulty well and prolong service life of pumping rod. Integrating characteristics of all pumping rods in our company, we developed the device anti-eccentric wear made from carbon fiber. It is an ideal product against eccentric wear with simple structure, convenient installation, resistance to abrasion and wide application field.

SIZE

ZZ-16

ZZ-19

ZZ -22

ZZ -25

OD mm

160

260

260

260

TUBING  inch

PJG16

PJG19

PJG22

PJG25

LENGTH   mm

60

80

100

120

WEIGHT Kg

58

70

58

70

58

70

58

70

CONNECTION THREAD

27/8

31/2

27/8

31/2

27/8

31/2

27/8

31/2

LOAD CAPACITY  KN

1.2

1.8

1.4

2.3

1.6

2.8

2.1

3.0

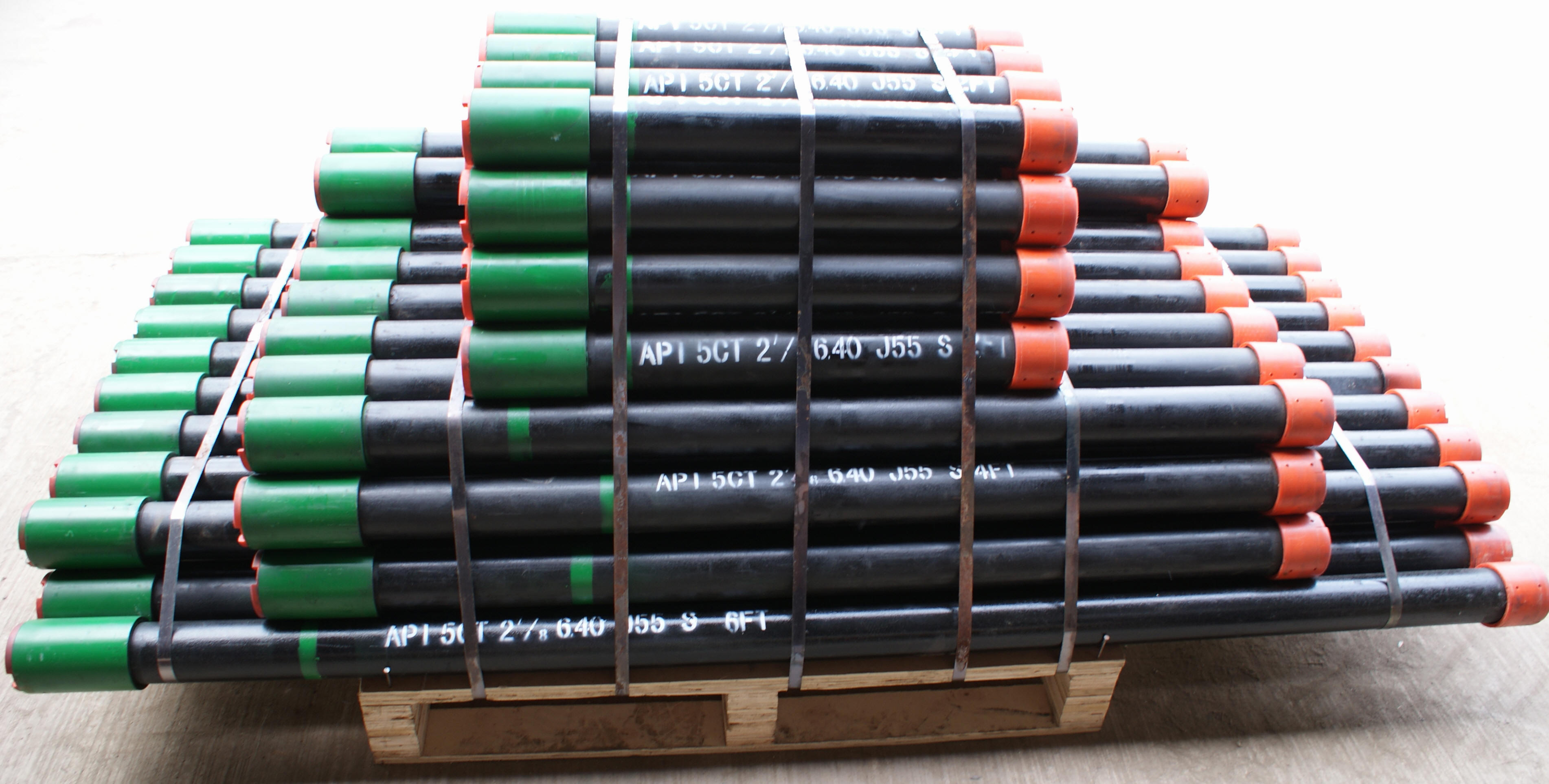

API 5CT TUBING AND CASING PUP JOINT AND COUPLING

    Shineuip can provide various pup joint with size of 2 3/ 8"to 4 1/ 2". The casing size ranges from 4 1/ 2"to 13 3/ 8", length 2ft,4ft,6ft,8,ft,10ft.Thread include BTC, STC, LTC, premium thread (instead of VAM).Steel grade: J-55, N-80-P110, L-80, C-90, C-95, T-95.

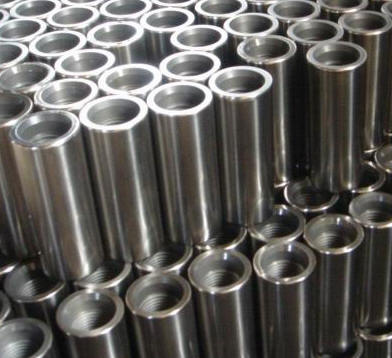

SHINEQUIP can provide various COUPLING. The COUPLING is completely conform to API 5CT and API 5B standards.



LABEL1

SIZE

Outside diameter

Minimum length

Diameter of counter-bore

Width of bearing face

Mass

KGS

OD

regular

Special clearance

mm

mm

mm

mm

mm

mm

regular

Special clearance

1

2

3

4

5

6

7

8

9

4 1/2”

114.3

127.00

123.82

225.42

117.86

3.18

4.55

3.48

5”

127

141.3

136.52

231.78

130.56

3.97

5.85

4.00

5 1/2”

139.70

153.67

149.22

234.95

143.26

3.97

6.36

4.47

6 5/8”

168.28

187.71

177.80

244.48

171.83

6.35

11.01

5.65

7”

177.80

194.46

187.32

254.00

181.36

5.56

10.54

6.28

7 5/8”

193.68

215.90

206.38

263.52

197.23

7.94

15.82

9.29

8 5/8”

219.08

244.48

231.78

269.88

222.63

9.52

20.86

10.80

 9 5/8”

244.48

269.88

257.18

269.88

248.03

9.52

23.16

12.02

10 3/4”

273.05

298.45

285.75

269.88

276.61

9.52

25.74

13.39

11 3/4”

298.45

323.85



269.88

302.01

9.52

28.03



13 3/8”

339.72

365.12

203.20



343.69

5.56

25.66



16”

406.40

431.80

228.60



411.96

5.56

34.91



18 5/8”

473.08

508.00

228.60



478.63

5.56

54.01



20”

508.00

533.40

228.60

292.10

513.56

5.56

43.42

57.04



















NOTE:

For group 1,2 and 3, tolerance on OD W, is +-% but not larger than +-3.18mm.

For group 4, tolerance on OD W, is +-1%but not larger than +3.18mm,-1.59mm.

The coupling specification label is same as the corresponding pipe specification label.

Tolerance on diameter of recess Q, for all groups is +0.79mm.

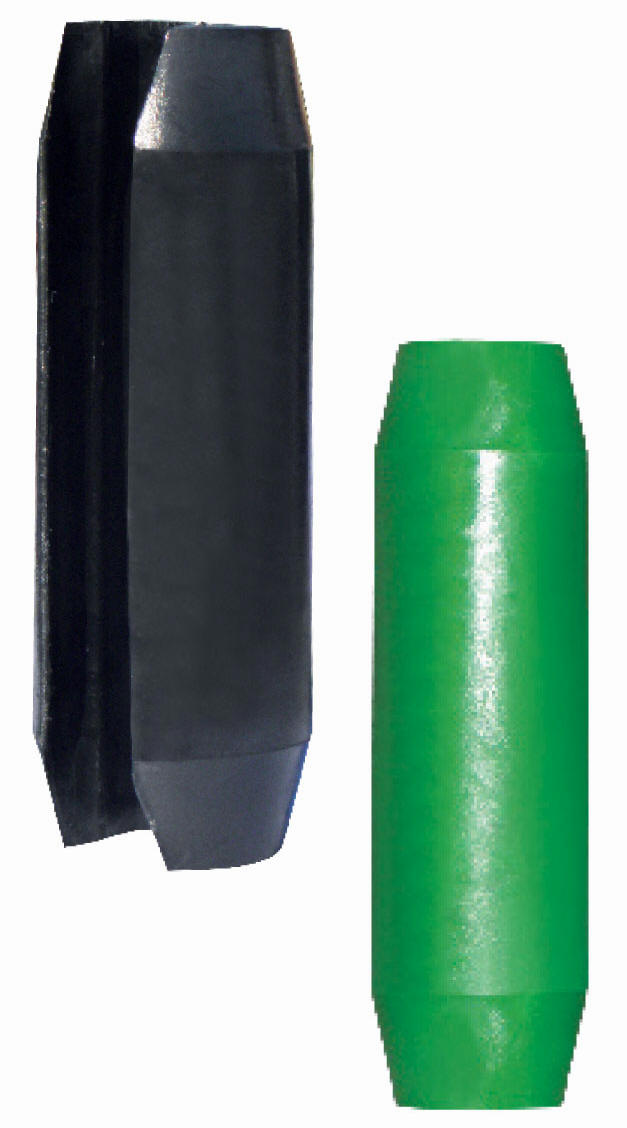

tubing and casing thread protector

Material

A. Rolled steel
B. Polyethylene
C. Pigment of plastic
With pretty appearance, various variety and complete specs from 2 3/8” to 20” petrol tube, bushing screw thread protector all ready, and manufacture special fastener according to the requirement of customers.
